InTouch Mini-Kiosk

InTouch is a 9.7" touch terminal that can serve as a price-checker, mini-kiosk, or a mini POS system. It offers the choices of Intel or OMAP CPU to run on Windows or Android OS. It is designed to fit into any store environments. Its unique yet practical design is a perfect combination of form and function.




Accessories

minikiosk

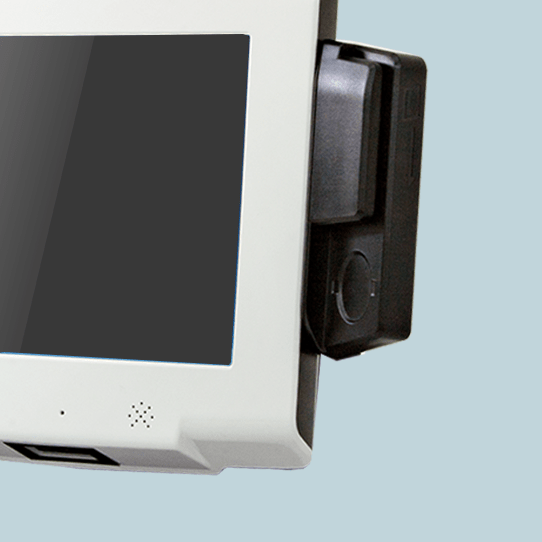

Magnetic Stripe Card Reader

minikiosk

1D / 2D Barcode Scanner

minikiosk

Customer Display VFD

minikiosk

Wall Mountable

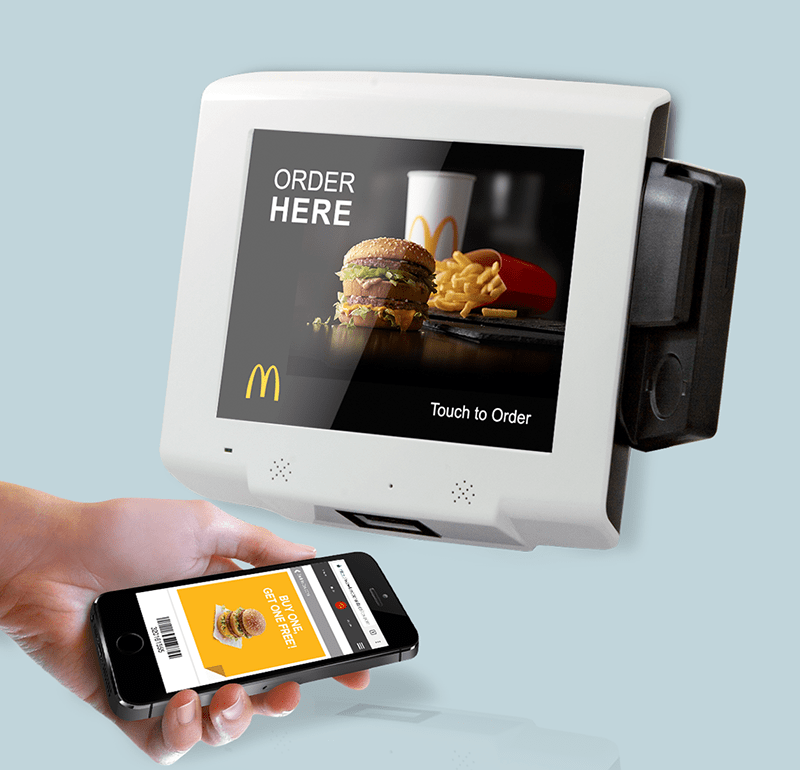

InTouch mini kiosk is a multi-function and entry-level terminal. It can be placed on the counter or mounted to the wall. The industry-standard VESA enables flexible mounting options for your business needs. It is definitely the right choice for budget-conscious businesses.

Versatile Applications


Take self-service to a new level with InTouch mini-kiosk. The unit provides the options of an integrated 1D or 2D barcode scanner and flexible connections with Printer, customer display, and MSR Card Reader. It is ideal for the self-ordering, price checkers and any kiosk applications.

minikiosk
minikiosk

Colors to Match Your Decor


InTouch mini-kiosk comes in the choices of white and grey colors which flow nicely with nearly any interior design. The sleek and compact looks of the unit also add style to the store decor.

Specifications



DISPLAY

  • 9.7" TFT LCD Panel
  • 1024 X 768 Resolution
  • 5-Wire Resistive Touch

SYSTEM

  • Intel Celeron N2807
  • POS Ready 7 / Windows 7 / Windows 8 / Windows 10

  • -- Android --
  • Freescale i.MX6 U / Q ARM Cortex-A9 Dual/Quad Core CPU 1GHz
  • Android 4.2.2 Jelly Bean / Ubuntu Linux

STORAGE

  • 2GB to 4GB RAM DDRIII
  • Support up to 1TB both HDD and SSD

  • -- Android --
  • 2GB RAM DDRIII
  • eMMC 8G

INPUTS/OUTPUTS

  • External USB ports X 3
  • External Serial ports X 3 (+5V / +12V selectable)
  • mPCIe, Ethernet, VGA, Audio, Cash drawer port

  • -- Android --
  • External USB ports X 2
  • External Serial ports X 2 (+5V / +12V selectable)
  • mPCIe, Ethernet, Audio, Cash drawer port

PHYSICALS

  • 268 x 285 x 179 mm
  • 3.2 kgs
  • Operating condition: 0°C ~ 40°C, 20%RH ~ 90%RH
  • Storage condition: -20°C ~ 60°C, 10%RH ~ 90%RH

OPTIONALS

  • Magnetic Stripe Card Reader
  • VFD Customer Display
  • 1D/ 2D Barcode Scanner
