Mini-X POS / Kiosk

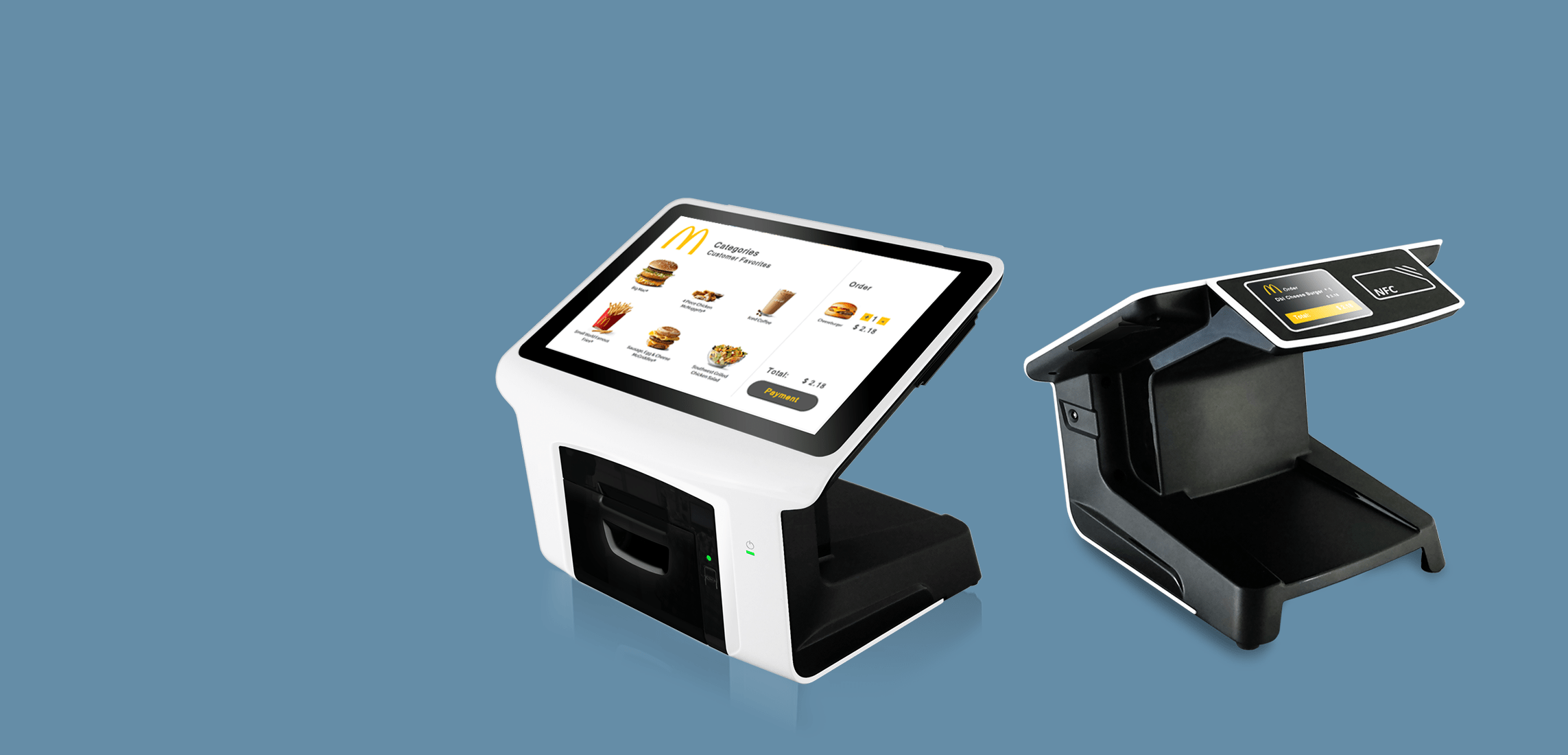

The Mini Xtreme-Pos (Mini-X) is a 10.1" touch terminal with a thermal printer included that can serve as a mini-kiosk or a mini POS system. There are no complicated cable connections that simplify the installation and use. Its compact and stylish design is perfect for any store environment where space and aesthetics are concerned.
Accessories
Magnetic Stripe Card Reader
1D / 2D Barcode Scanner | LCD Customer Display
58 / 80mm Thermal Receipt Printer

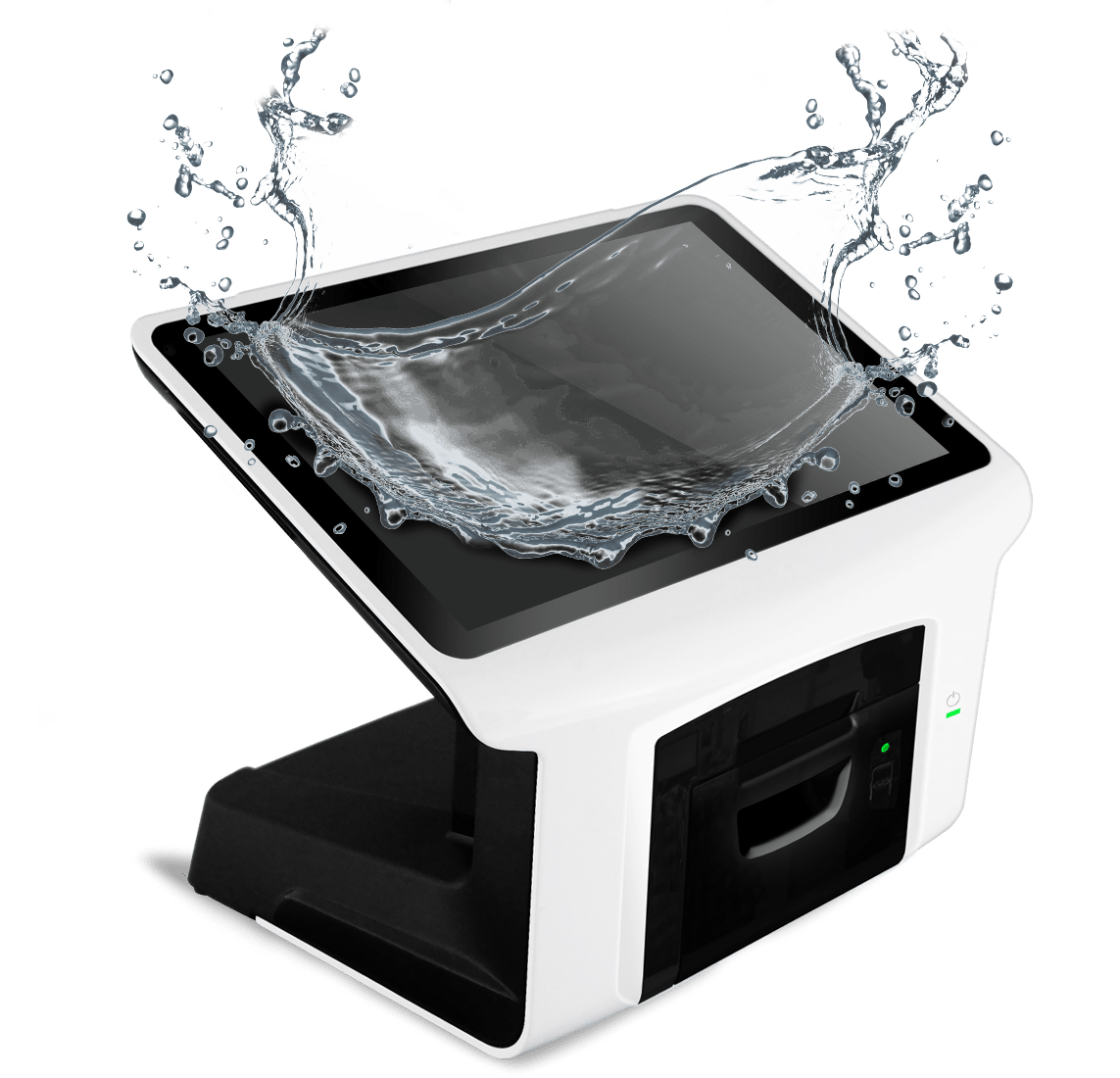

Water Splash Proof
The Mini-X POS is 100% fanless which allows it to run quietly and at the same time to provide a long service life. It is resistant to internal dust build up as well as splashing water, and it is designed to withstand harsh environments.
Versatile Applications
The Mini-X POS offers the options of a 1D or 2D barcode scanner, LCD customer display, MSR Card Reader, and NCR reader integrated into a single terminal. It is ideal for any POS and kiosk applications by taking various in-store conditions into considerations.
Colors to Match Your Decor
The Mini-X POS comes in the choices of white and grey colors which flow nicely with nearly any interior design. The sleek and compact looks of the unit also add style to the store decor.
Specifications
DISPLAY
- 10.1" TFT LCD Panel
- 1280 X 800 Resolution
- PCAP Multi-Touch Screen
SYSTEM
- Intel Atom Cherry Trail x5-Z8350
- Windows 10 IOT / Android 7.1
STORAGE
- 2GB to 4GB RAM DDRIII
- eMMC 32GB / 16GB Micro SD
INPUTS / OUTPUTS
- External 2.0 USB ports X 3
- External 3.0 USB ports X 1
- Micro USB ports X 1
- External Serial ports X 2
- MiroSD X 1
- Ethernet, Audio, cashdrawer port, DC-IN
PHYSICALS
- 266 x 234 x 240 mm
- 4 kgs
- Operating condition: 0°C ~ 40°C, 20%RH ~ 90%RH
- Storage condition: -20°C ~ 60°C, 10%RH ~ 90%RH
OPTIONALS
- Magnetic Stripe Card Reader
- 2.8" LCD Customer Display
- 1D/ 2D Barcode Scanner
- NFC Reader
- Fingerprint Scanner
- Wi-Fi
- -- Standard Peripherals --
- Thermal Printer 58/80mm
